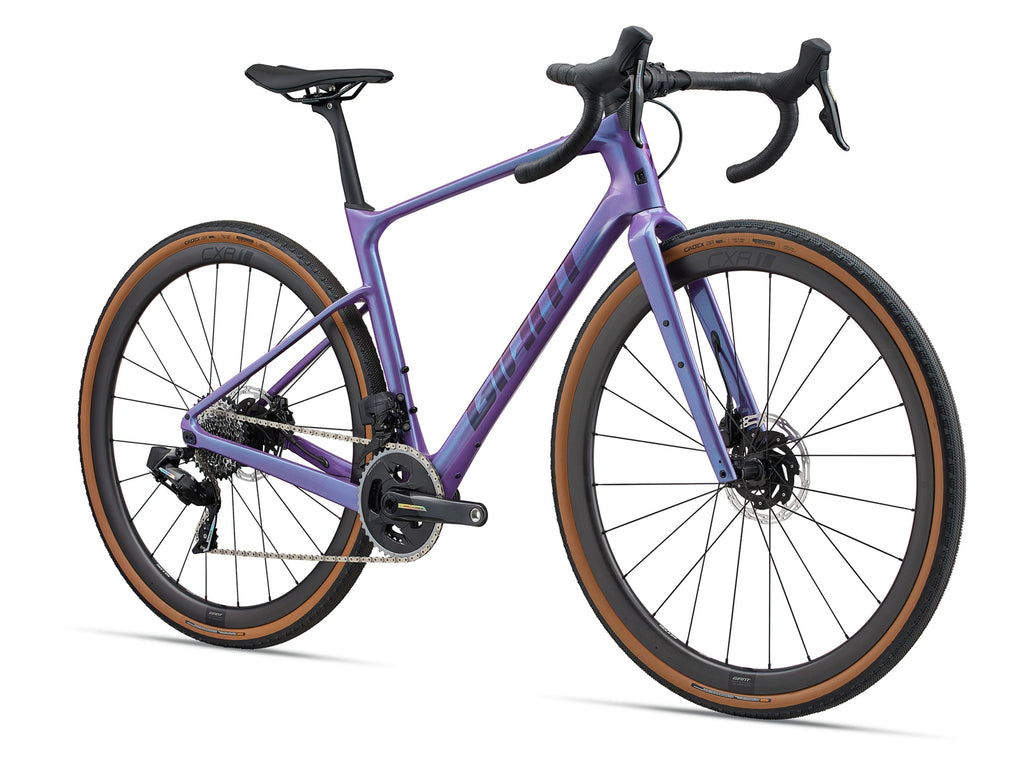

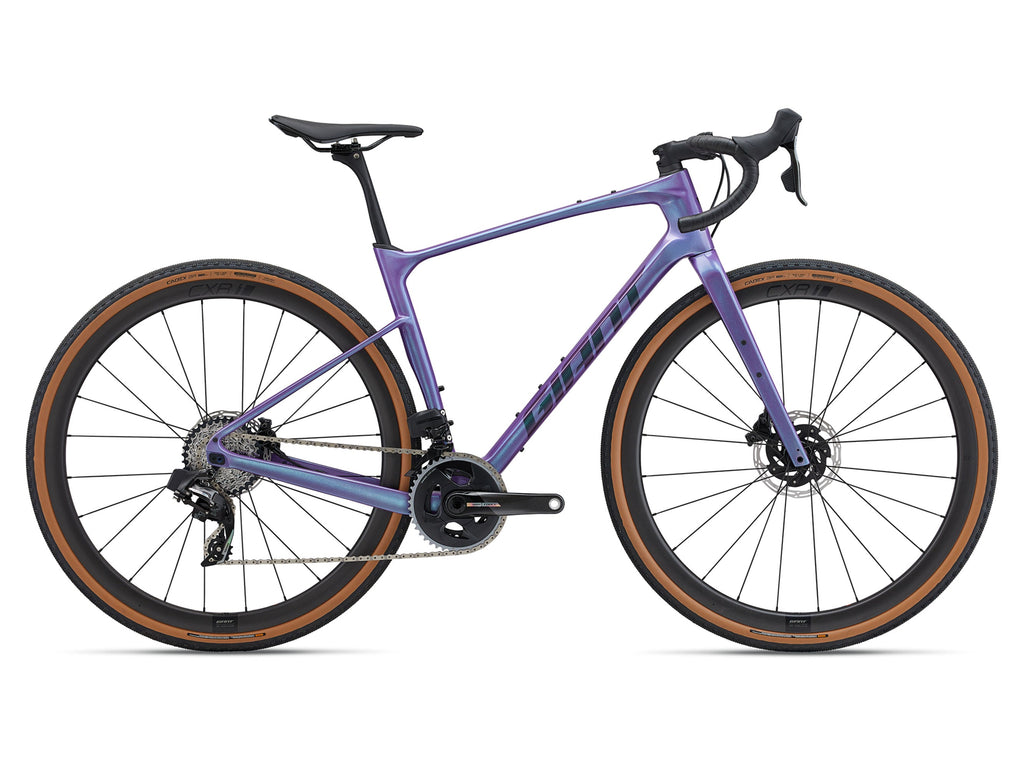

Giant Revolt Advanced Pro 0 - Digital Blurple
Giant Revolt Advanced Pro 0 - Digital Blurple
Giant Revolt Advanced Pro 0 - Digital Blurple
Giant Revolt Advanced Pro 0 - Digital Blurple

Giant Revolt Advanced Pro 0 - Digital Blurple

Size
Price
Regular price $6,499.00
Regular price $8,299.00 Sale price $6,499.00
/
**AVAILABLE FOR IN-STORE COLLECTION ONLY**




RIDE ROADS, GRAVEL OR DIRT WITH THIS ALL-NEW ALUMINIUM ALL-ROUNDER. A COMPOSITE FORK GIVES IT A SMOOTH RIDE, AND A FLIP CHIP LETS YOU ADJUST WHEELBASE AND TYRE CLEARANCE.

Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
New frame features thinner, dropped seat stays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Highlights
The all-new Revolt features a lightweight ALUXX aluminium frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tyre clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tyres up to 53mm.

Components
Frame :: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork :: Advanced SL-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar :: Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips :: Stratus Lite 3.0
Stem :: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost :: Giant D-Fuse SLR, composite, -5/+15mm offset
Saddle :: Giant Approach SL
Shifters :: SRAM Force AXS HRD
Front Derailleur :: SRAM Force AXS Wide
Rear Derailleur :: SRAM Force AXS, Max 36T
Brakes :: Sram Force AXS HRD, SRAM CEnterline Rotors F160mm, R160mm
Brake Levers :: Sram Force AXS HRD
Cassette :: SRAM Force XG-1270 10-36t
Chain :: Force D1 12 Speed
Crankset SRAM Force D2 Dub 43/30 XS:170mm, S:170mm, M:172.5mm, M/L: 172.5mm, L:175mm, XL:175mm
Bottom Bracket SRAM Dub Press Fit
Rims :: Giant CXR 1 Carbon Disc WheelSystem
Hubs :: Giant CXR 1 Carbon Disc WheelSystem
Spokes :: Giant CXR 1 Carbon Disc WheelSystem
Tires :: Cadex AR 40c
Extras Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
