BUILT TO GO FASTER. WHETHER YOU’RE CLIMBING, CORNERING OR LAUNCHING AN ATTACK, THIS ALL-NEW COMPOSITE ROAD RACER IS MADE FOR THAT MOMENT. LIGHTWEIGHT, EFFICIENT, AND INTEGRATED FOR SPEED, IT’S ENGINEERED TO GIVE YOU A COMPETITIVE EDGE IN EVERY SITUATION.
KEY PERFORMANCE FACTORS
SYSTEM OPTIMIZATION

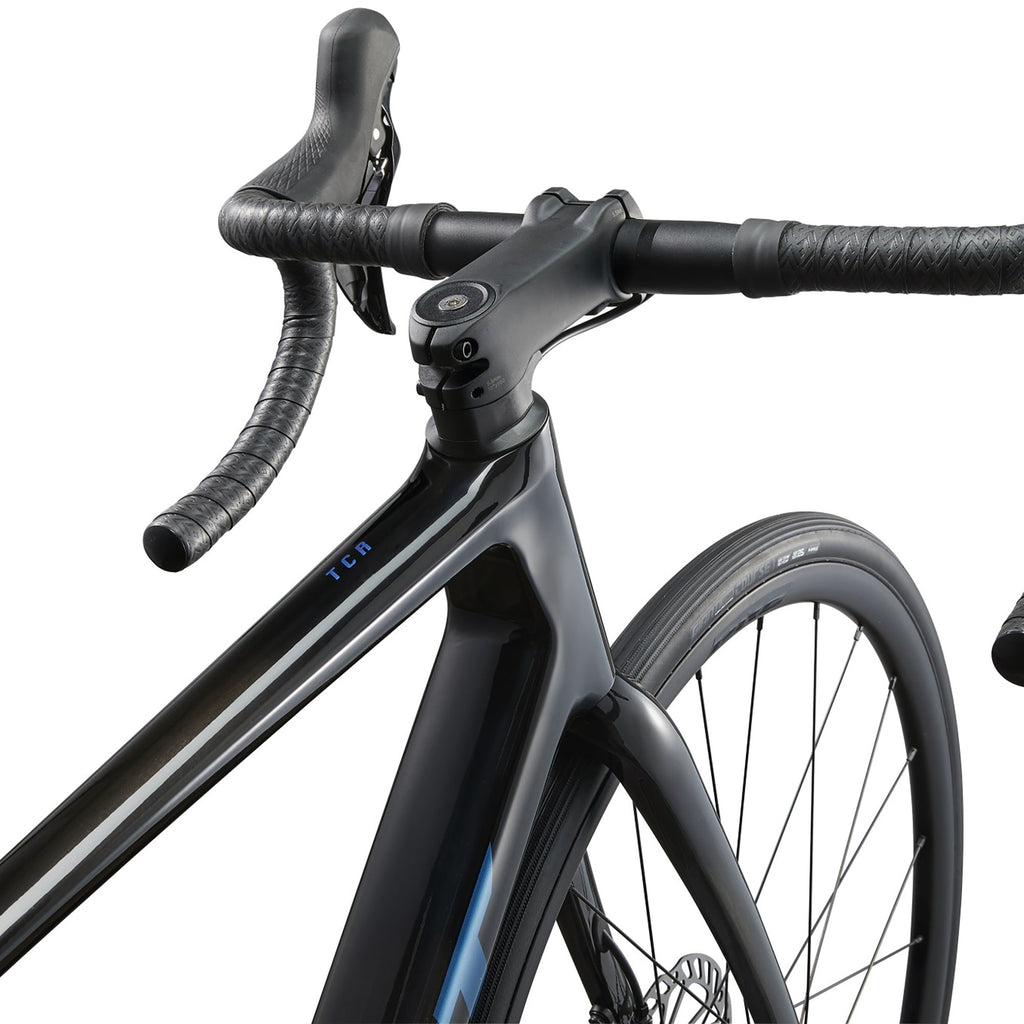

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

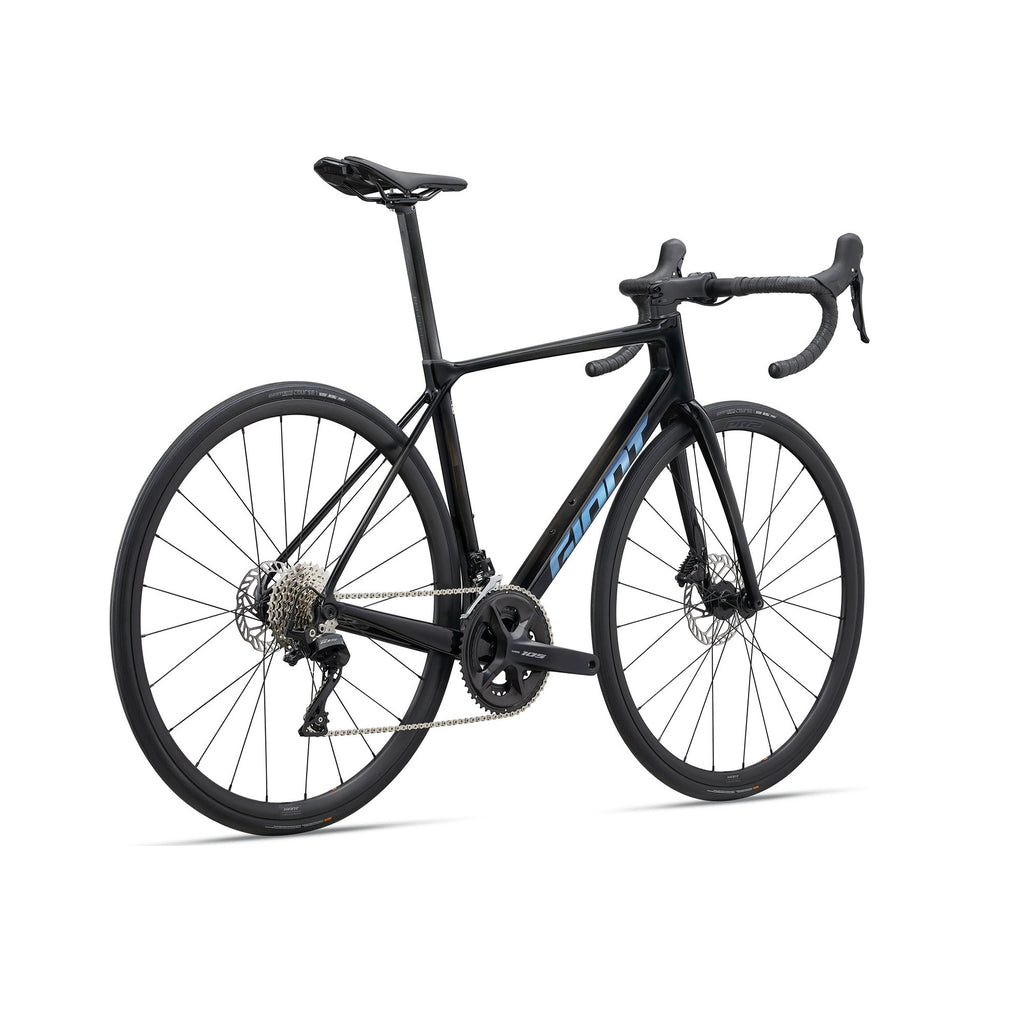

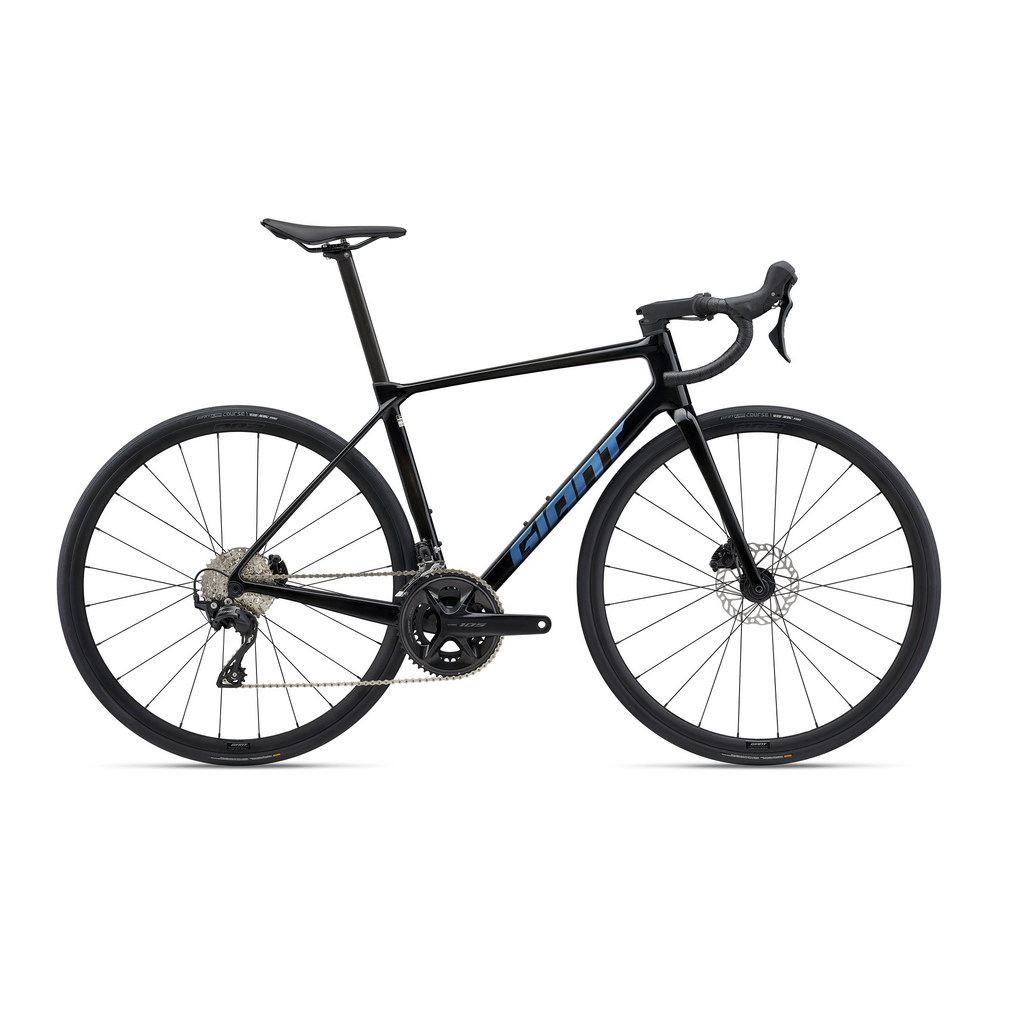

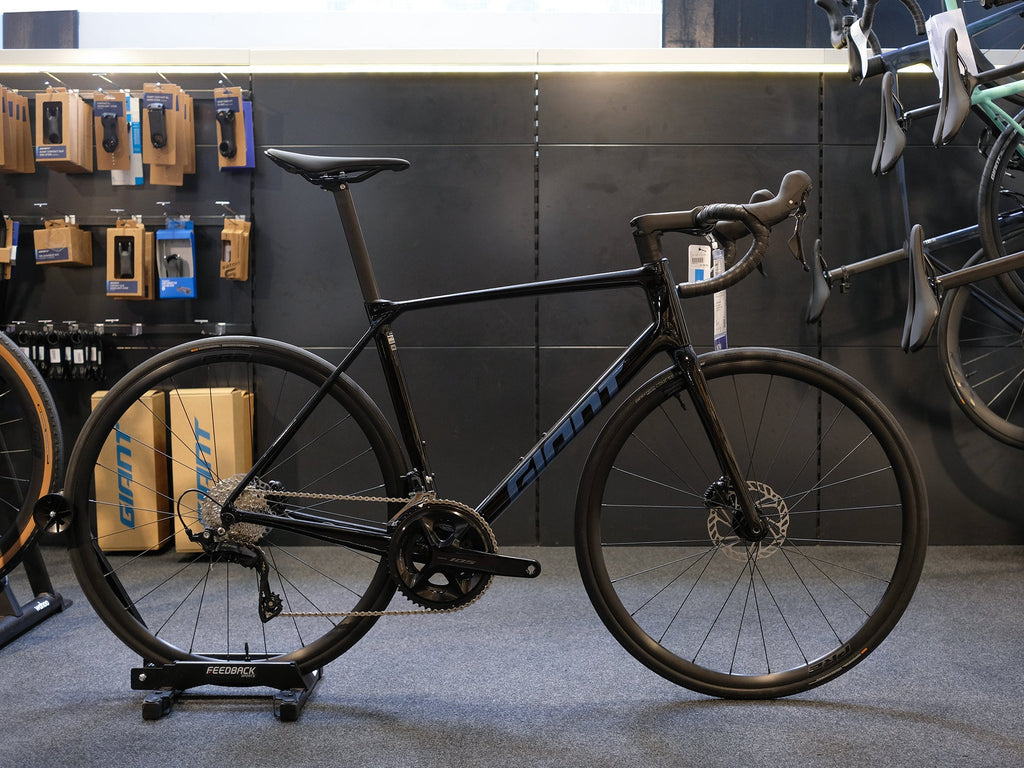

| Model Name | TCR Advanced 2 PC |
| Colours | Carbon |
| Sizes | XS, S, M, M/L, L, XL |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc |

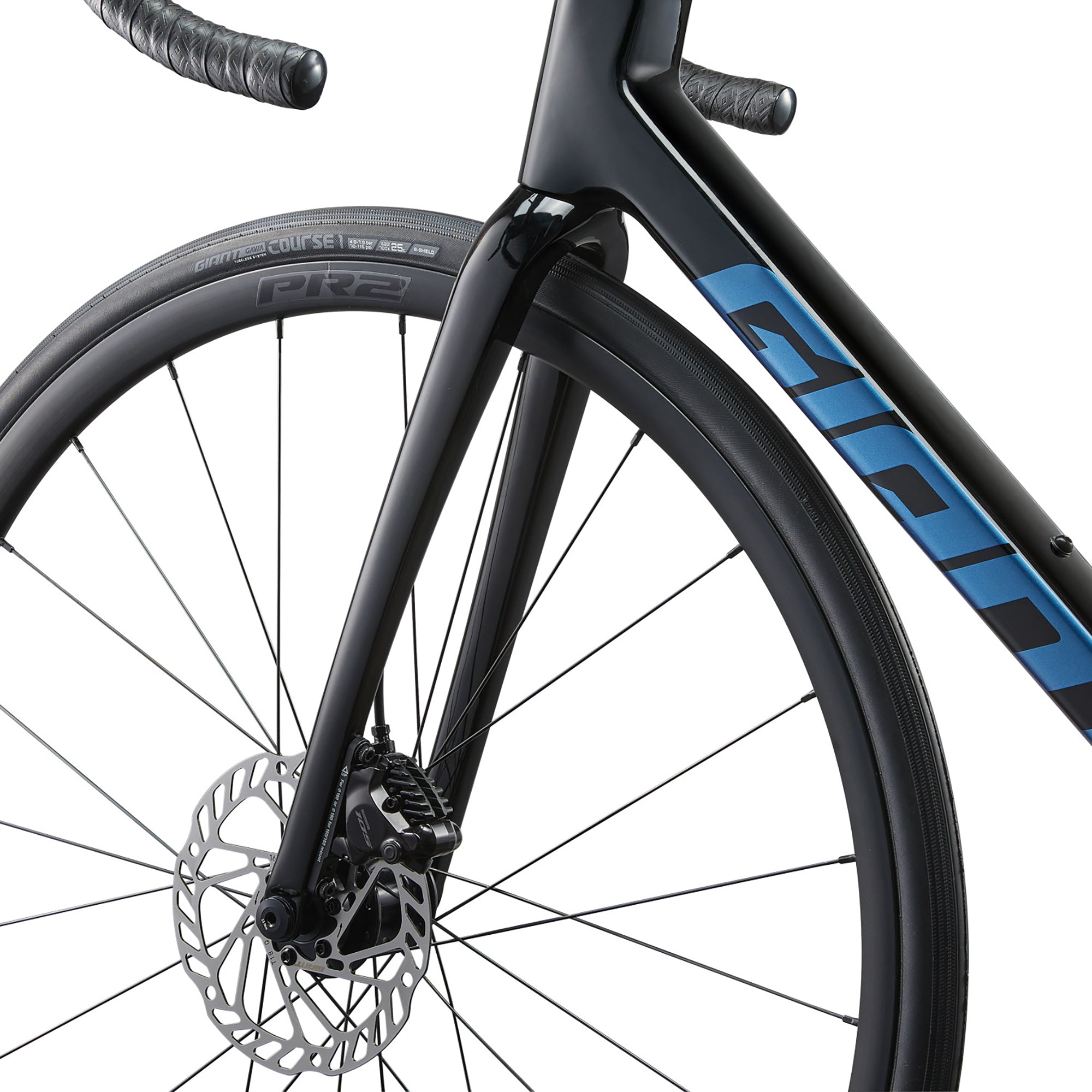

| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Approach |
| Pedals | N/A |
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano 105 |
| Brakes | Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 hydraulic |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12L-1 |

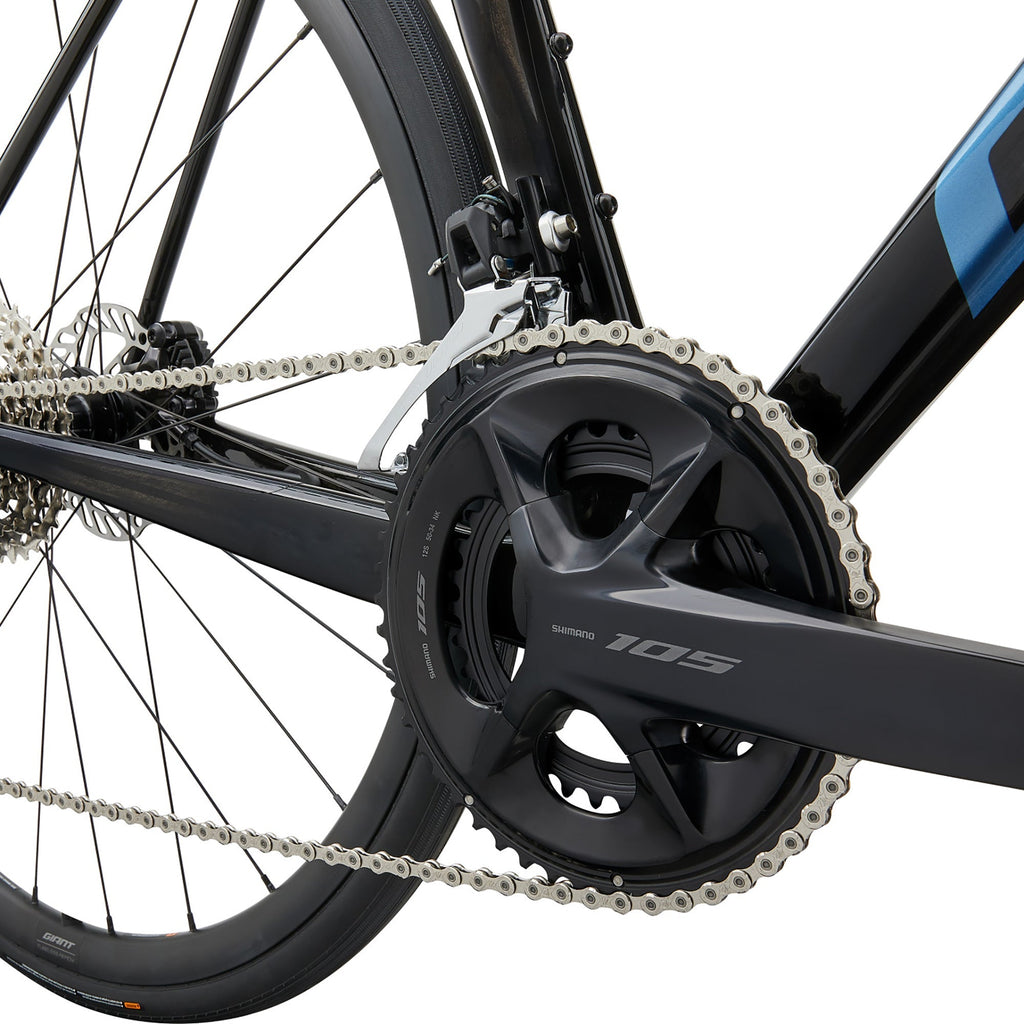

| Crankset | Shimano 105, 36/52 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2, [F]36mm, [R]36mm |
| Hubs | 12mm thru-axle |
| Spokes | stainless |
| Tyres | Giant Gavia Course 1, tubeless, 700x25c (28mm), folding |
| Extras | Tubeless prepared, 33mm max tyre size |
| TCR Advanced Pro TCR Advanced |
XS | S | M | ML | L | XL | |
| A | Seat tube length | 425 | 445 | 470 | 500 | 530 | 560 |
| B | Seat tube angle (degrees) | 74.50 | 74.00 | 73.50 | 73.00 | 73.00 | 72.50 |
| C | Top tube length | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head tube length | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Head tube angle (degrees) | 71.00 | 72.25 | 73.00 | 73.00 | 73.00 | 73.00 |
| F | Fork rake | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail | 72 | 64 | 59 | 59 | 59 | 59 |
| H | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain stay length | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom bracket drop | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
| K | Stack | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Stand over height | 703 | 722 | 743 | 771 | 798 | 822 |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 | 440 |
| O | Stem length | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C | 700C |
