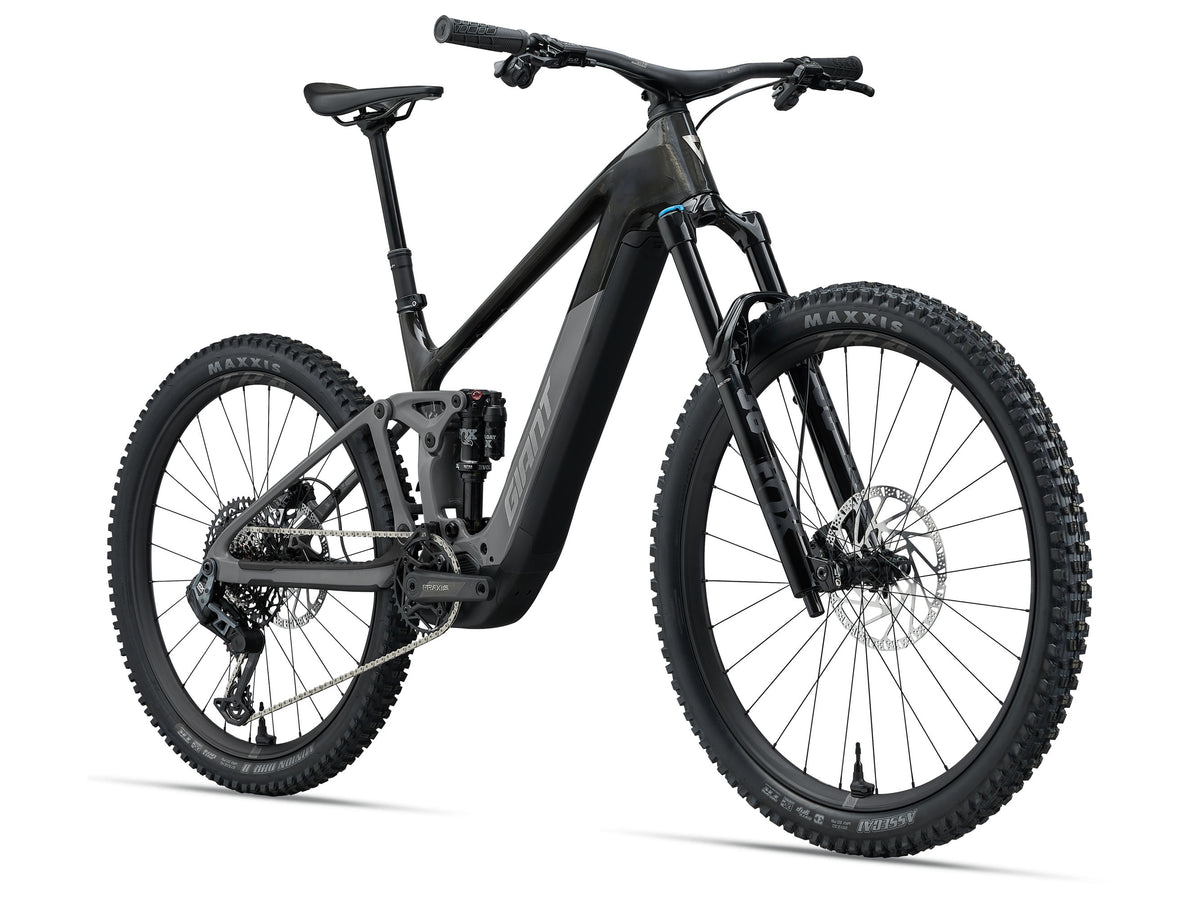

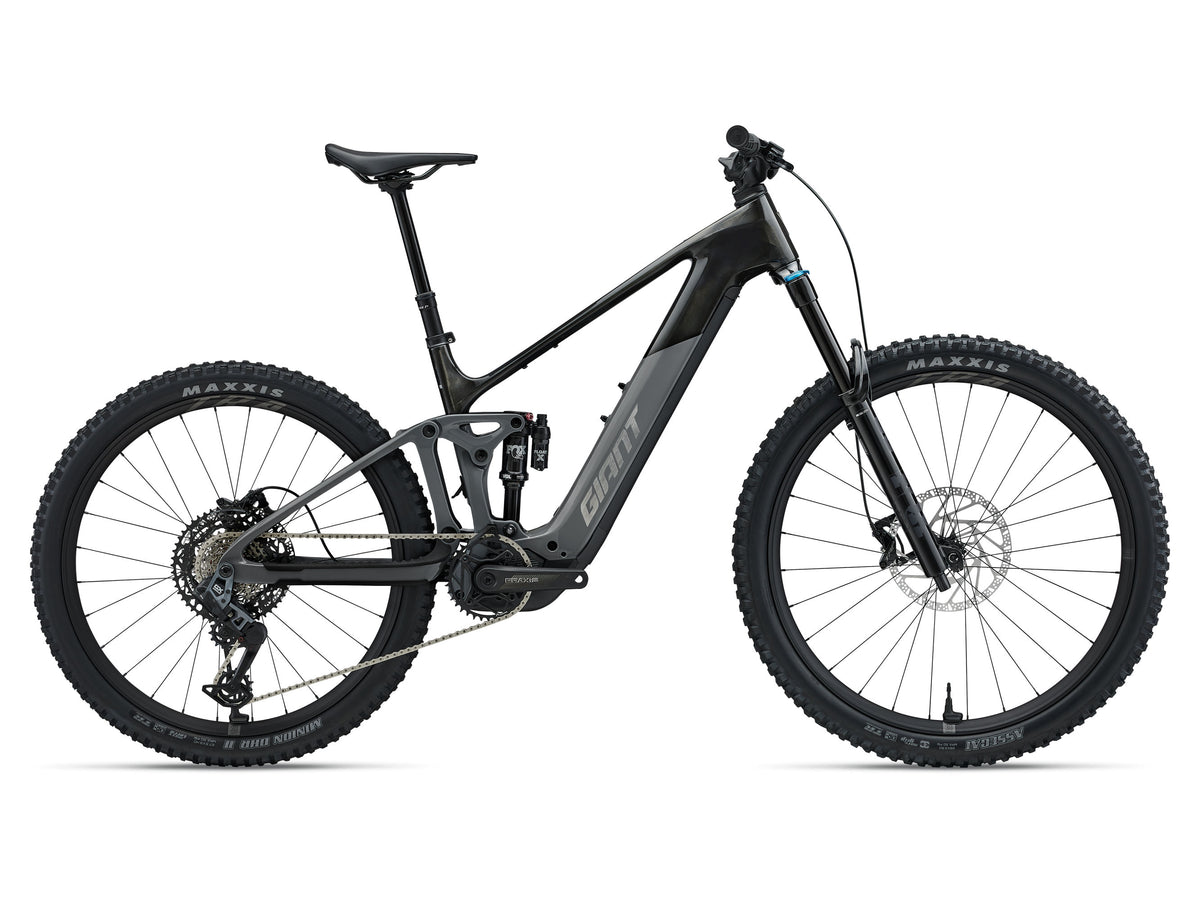

Giant Trance Advanced E+ 1 - Carbon/Tactical Grey

Full power that’s fully connected. The new Trance Advanced E+ and Giant E+ System were engineered as one for a full-power, fully controlled E-MTB experience. The frame, Maestro suspension, powertrain and software work together to give you instant power from 0 RPM, with sustained support and controlled grip that keeps you connected to the trail.

Features

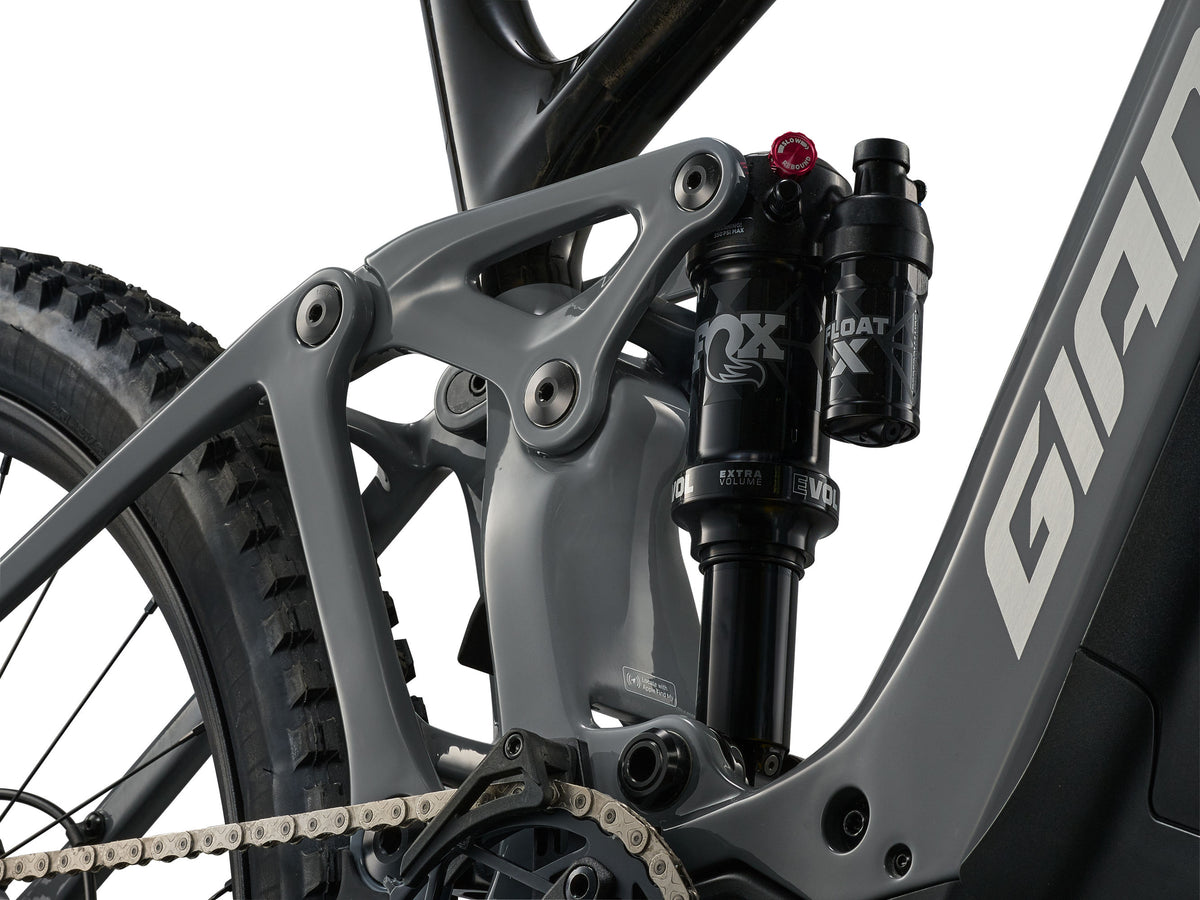

Advanced Control: SyncDrive Pro 4 Motor And Maestro Suspension Are Engineered Together Using A Custom Motor Housing To Accommodate Maestro’s Dual-Link Suspension Kinematics
Synchronized Power Matrix: Senses The Ride And Adjusts Motor Support To Your Tuning
Traction Control: Detects Rear Wheel Slip And Refines Assistance To Maintain Grip And Control On Loose Climbs
Mixed-Wheel Setup: 29-Inch Front Wheel For Smooth Rollover And 27.5-Inch Rear Wheel For Added Agility

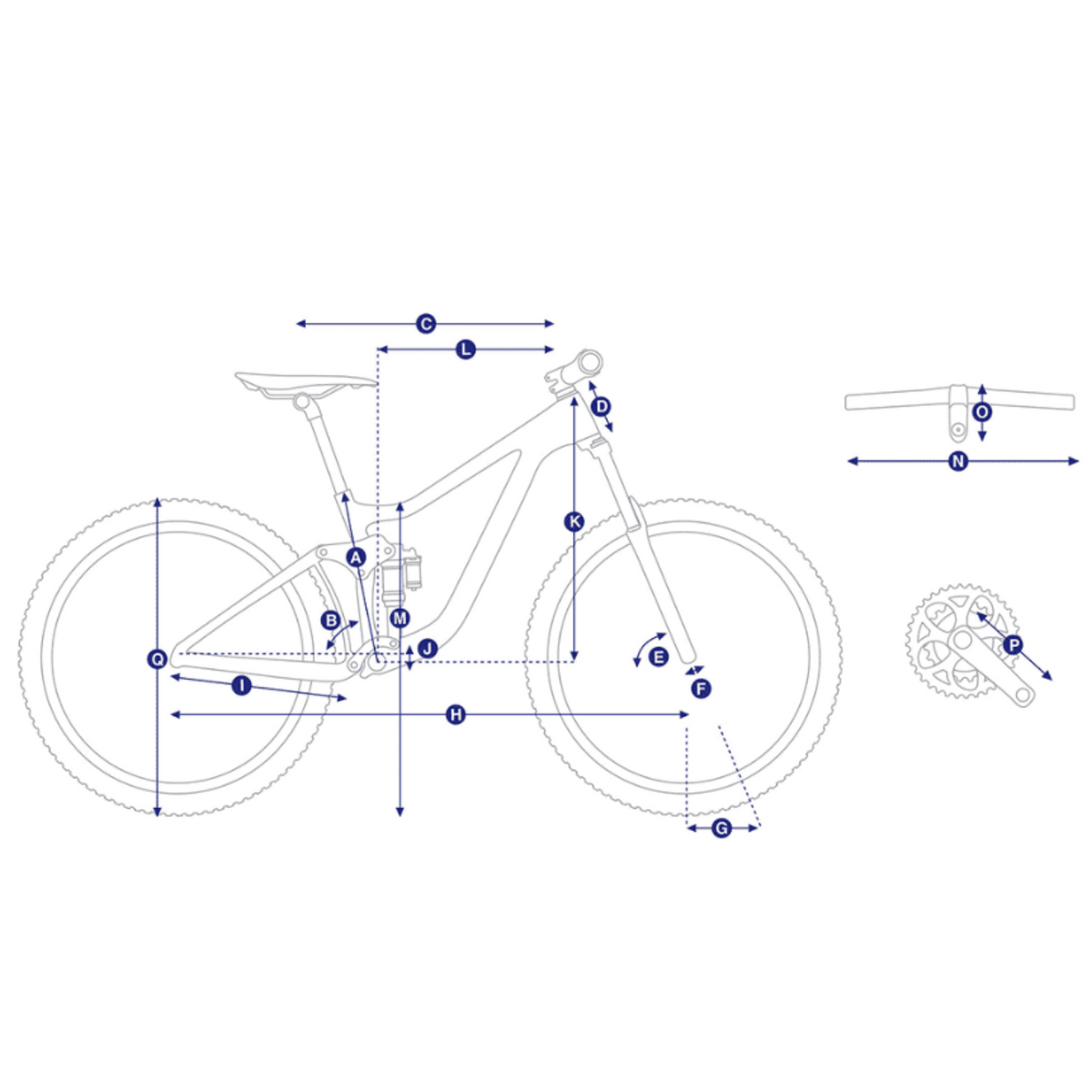

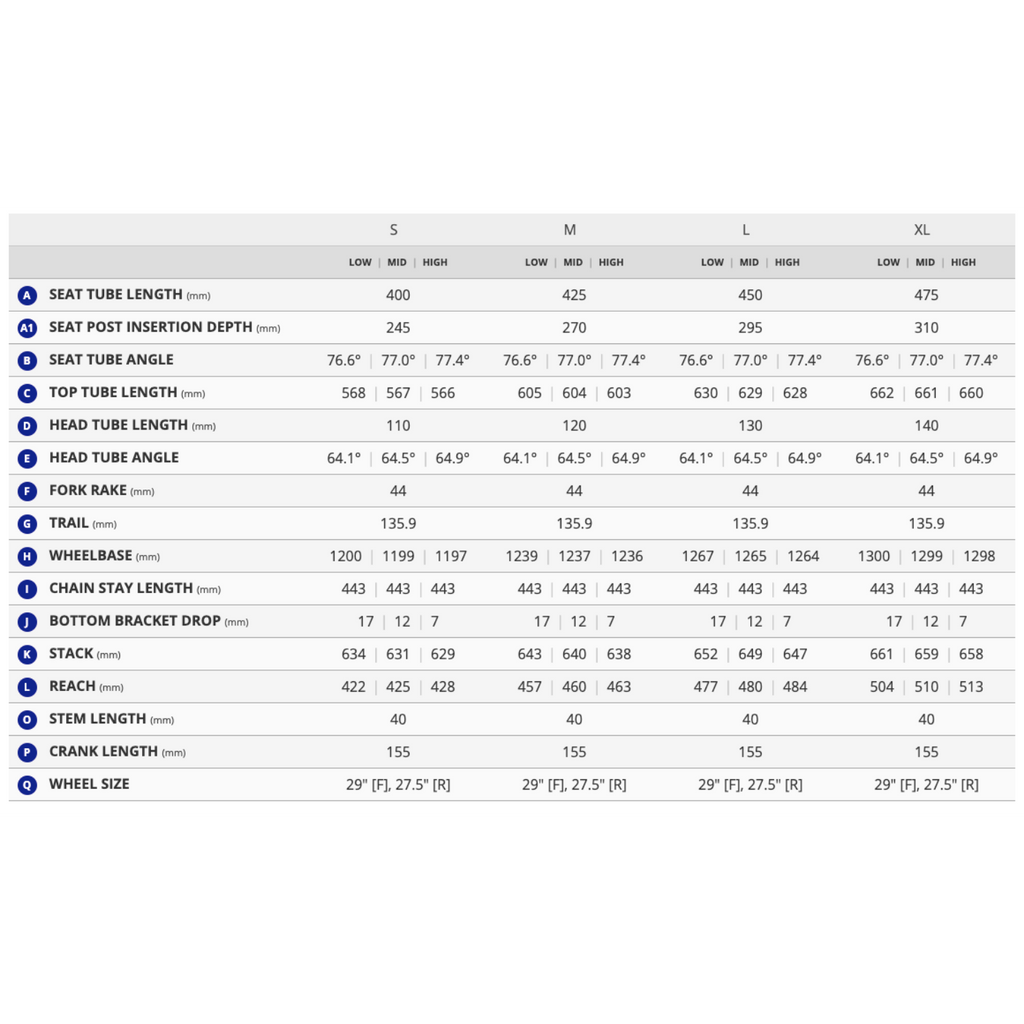

Flip-Chip Geometry: 3-Position Flip-Chip Geometry Allows You To Adjust Handling To Your Riding Style And Terrain
Motor Response: 0.28-Second Response Time With Assistance Starting At 0 Rpm
WheelSystem Durability: TRX And TRA HD WheelSystems With High-Torque Titanium Ratchet Hubs, 20% Stronger Than The Previous Generation
Fatigue Strength: 25% Stronger In Fatigue Testing Than Leading Competitors
Chain Strength: High-Torque KMC Chain With 35% Stronger Pin Strength Compared To Leading Benchmark 12-Speed Chains
Battery Lifespan: EnergyPak 840 With A 2,300-Cycle Lifespan
Service Support: Backed By Giant’s Global Retailer And Service Network


Specifications

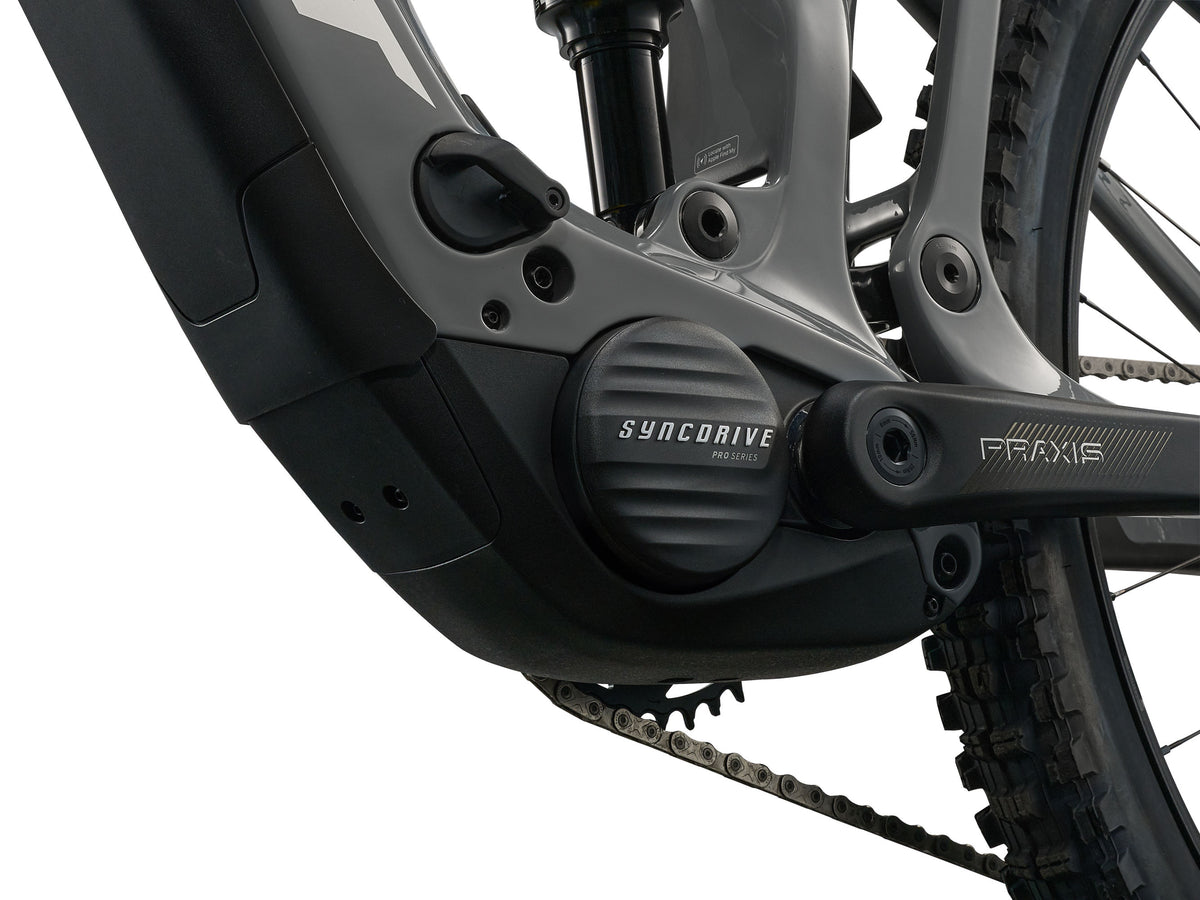

Motor: SyncDrive Pro4, 120 Nm, 48 V, 850 W Peak Power
Controller: Giant RideControl Ergo 5 Wireless Integrated E+ System & Seatpost Remote
Display: RideControl GO LUX, Frame-Integrated LED Display, ANT+
Battery: EnergyPak Smart 840 Wh, EnergyPak Plus 280 Range Extender Compatible
Charger: 48 V, 4 A Smart Charger X
Maximum Assisted Speed: Pedal Assist Limited To 25 km/h In Accordance With Australian Regulations (EN15194); No Motor Support Above This Speed
Sizes: S / M / L / XL
Colours: Carbon/Tactical Grey / Dusted Peri

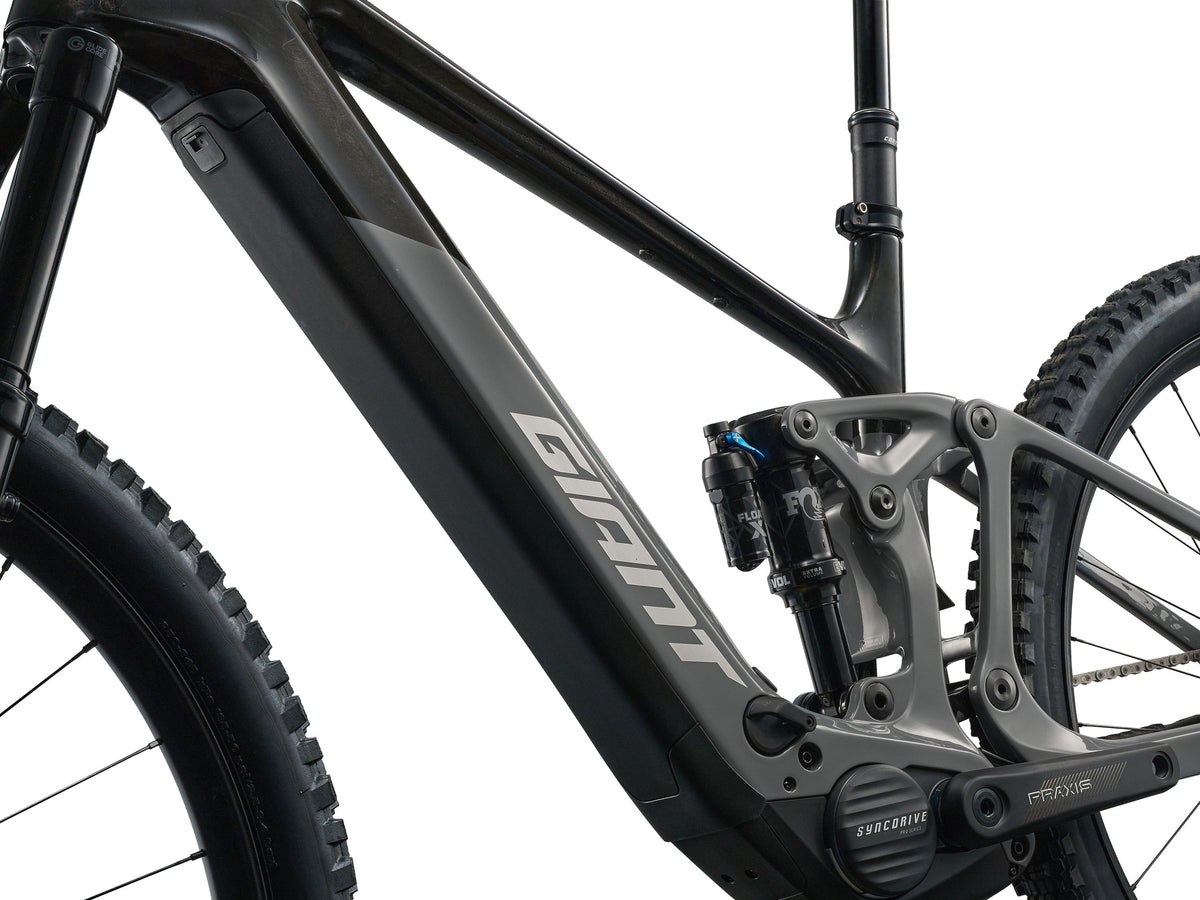

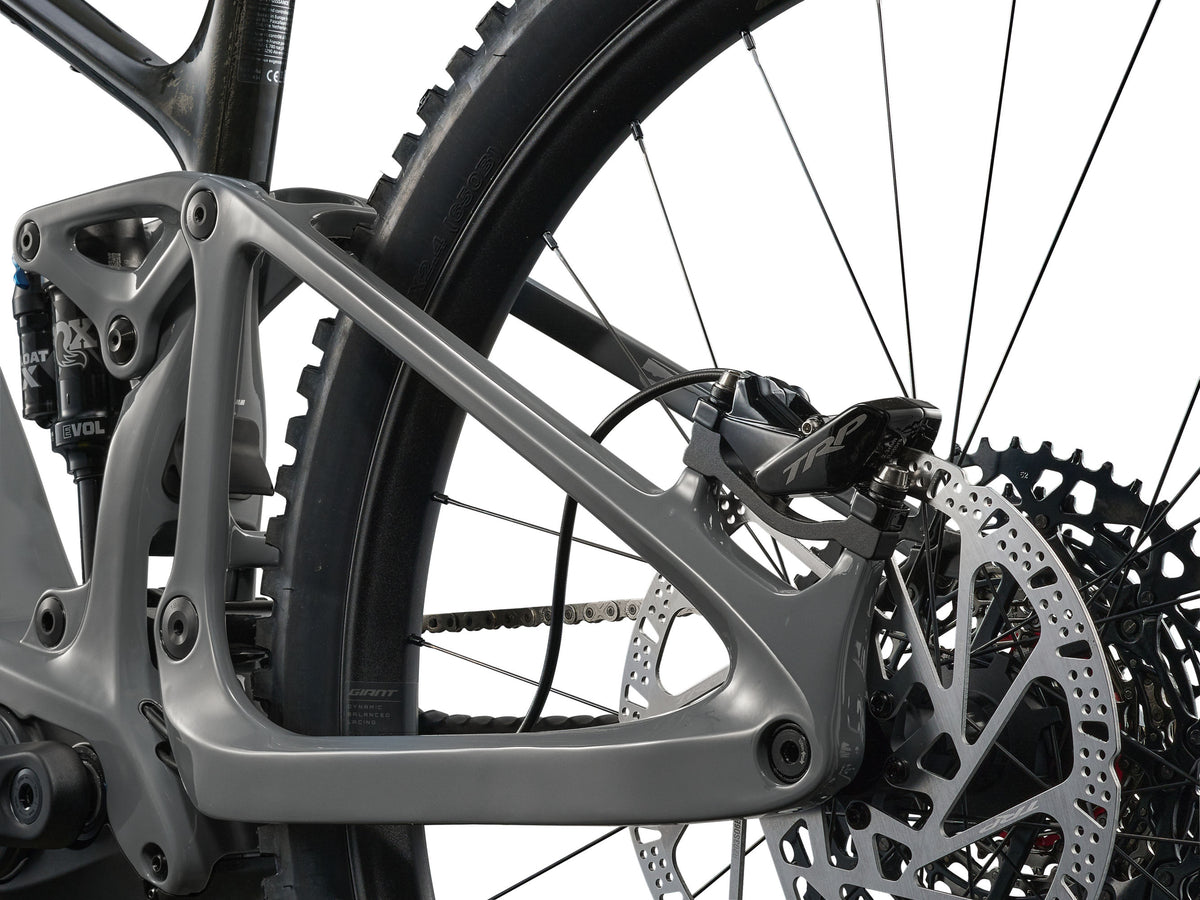

Frame: Advanced-Grade Composite, Advanced Forged Composite Upper Rocker, 150 mm Maestro Suspension System, 3-Position Flip-Chip, UDH Hanger, 12x148 mm Thru-Axle
Fork: Fox 36 Performance, 160 mm Travel, 44 mm Offset, GRIP Damper, 3-Position, Kabolt-X 15x110 mm Thru-Axle
Shock: Fox Float X Performance, EVOL Large Volume Sleeve, 2-Position Lever, Custom Tuned
Handlebar: Giant Contact SL Trail Integrated, Alloy, 27 mm Rise
Grips: Giant Tactal Pro Single Lock-On
Stem: Giant Contact SL Trail Integrated, Alloy, 27 mm Rise, S: 50 mm / M: 50 mm / L: 50 mm / XL: 50 mm

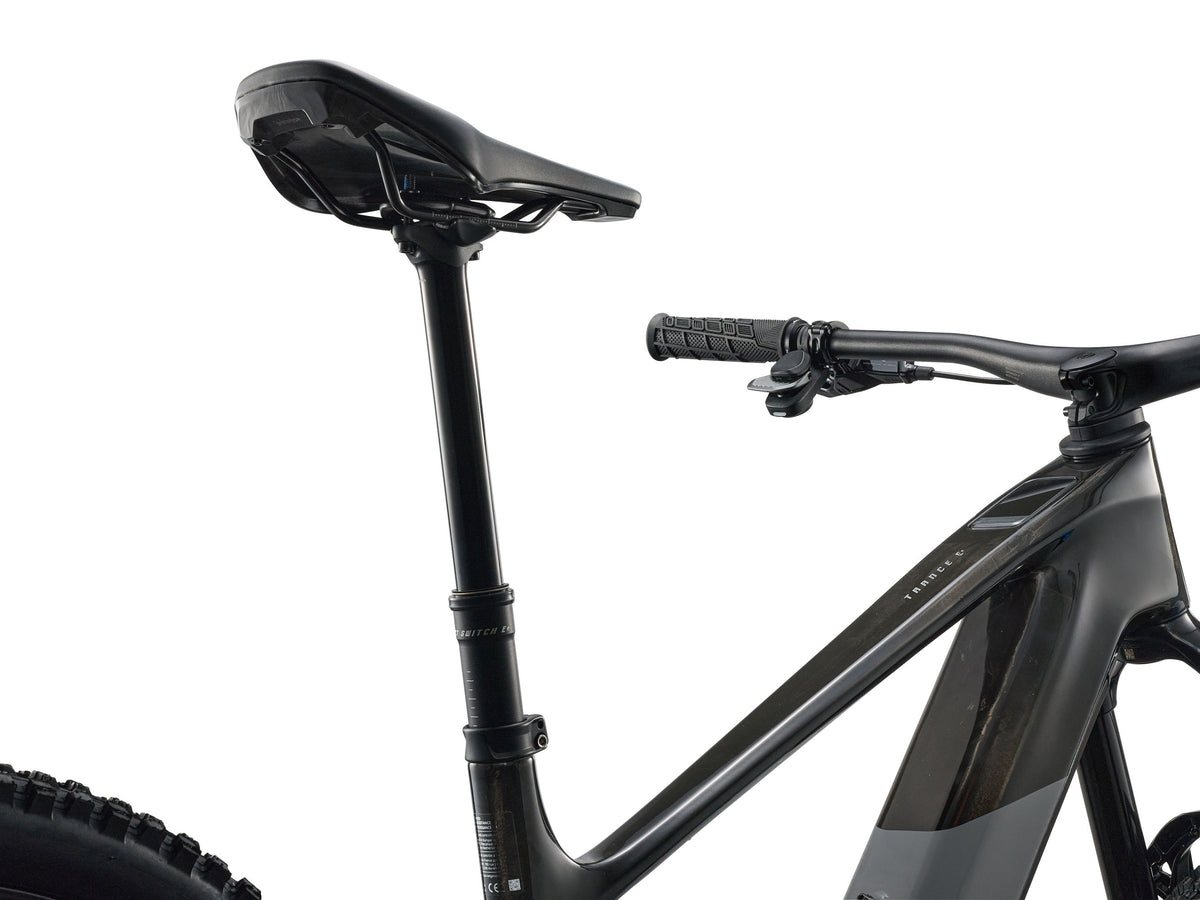

Seatpost: Giant Contact Switch E, Electronic Travel-Adjust Dropper Post, S: 140 mm Travel / 30.9 x 457 mm, M: 170 mm Travel / 30.9 x 514 mm, L: 170 mm Travel / 30.9 x 514 mm, XL: 200 mm Travel / 30.9 x 574 mm
Saddle: Giant Romero HD
Shifters: SRAM AXS Pod, Rocker Paddle, 1x12

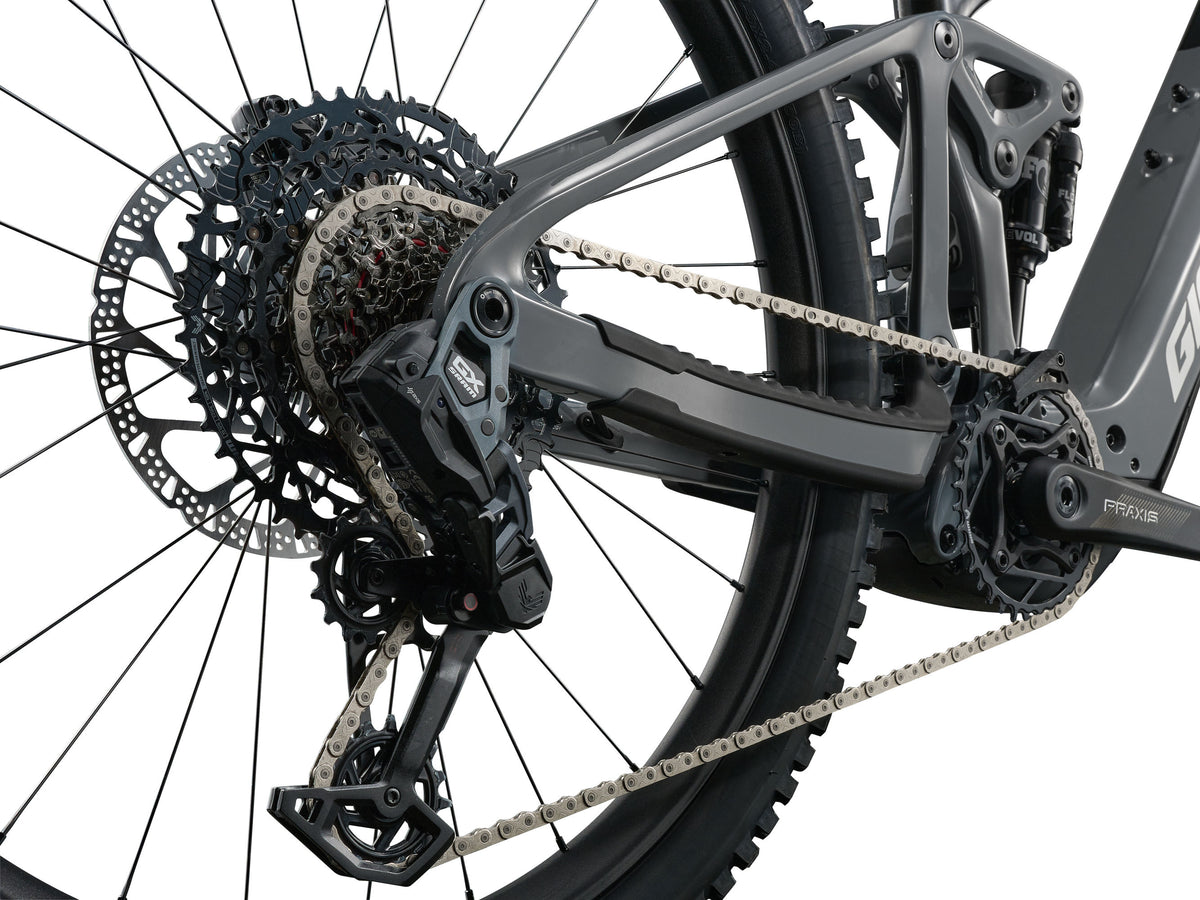

Rear Derailleur: SRAM GX Eagle Transmission AXS
Brakes: TRP EVO Expert, Hydraulic, TRP 2.3 mm Rotors, Front 220 mm / Rear 203 mm
Brake Levers: TRP EVO Expert
Cassette: SRAM GX XS-1270 Eagle Transmission, 10–52T
Chain: KMC eFlatHT
Crankset: Praxis E-HD Alloy Crank Arms, SRAM Eagle Transmission Steel Direct-Mount, 36T Chainring, S: 155 mm / M: 155 mm / L: 155 mm / XL: 155 mm
Bottom Bracket: N/A
Rims: Giant E-TRA Hookless Tubeless Ready Alloy, 29" Front / 27.5" Rear, 30 mm Inner Width
Hubs: Front Giant E-TRA MTB Alloy Hub, 6-Bolt, 28H / Rear Giant E-TRA MTB Alloy Hub, HG Drive Body, 72T Helical-Bevel Ratchet Driver, 6-Bolt, 28H
Spokes: Sapim Laser, E-Bike Optimised
Tyres: Front Maxxis Assegai 29x2.5", Foldable, Tubeless, EXO+, 3C MaxxGrip / Rear Maxxis Minion DHR II 27.5x2.4", Foldable, Tubeless, EXO+, 3C MaxxTerra
Extras: Tyre Pressure Management System, Torx 25 Battery Lock With Built-In Torque Limiter, Tubeless Kit (Liquid, Valves, Levers, Manual, Tool)
Fender/Chainguard: Co-Moulded Guide, 32–36T Adjustable

Mfr Claimed Weight
TBC
