FLOAT UP TECHNICAL CLIMBS AND SAIL DOWN CHUNKY DESCENTS. THIS ALL-NEW, FULL-COMPOSITE TRAIL BIKE GIVES YOU 140MM OF SMOOTH MAESTRO REAR SUSPENSION AND ALL SORTS OF ADJUSTABILITY. YOU CAN DIAL IN FRAME GEOMETRY AND SWITCH THE REAR WHEEL SIZE FOR THE TERRAIN.
KEY PERFORMANCE FACTORS
More Travel
New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
Adjustable trail geometry
A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.
Specifications
Sizes S, M, L, XL
Colour Blue Dragonfly/Chrome
Frame Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage
Fork Fox 36 Factory, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset
Shock Fox Float X Factory, two-position LSC adjust, 185/52.5, custom tuned for Giant

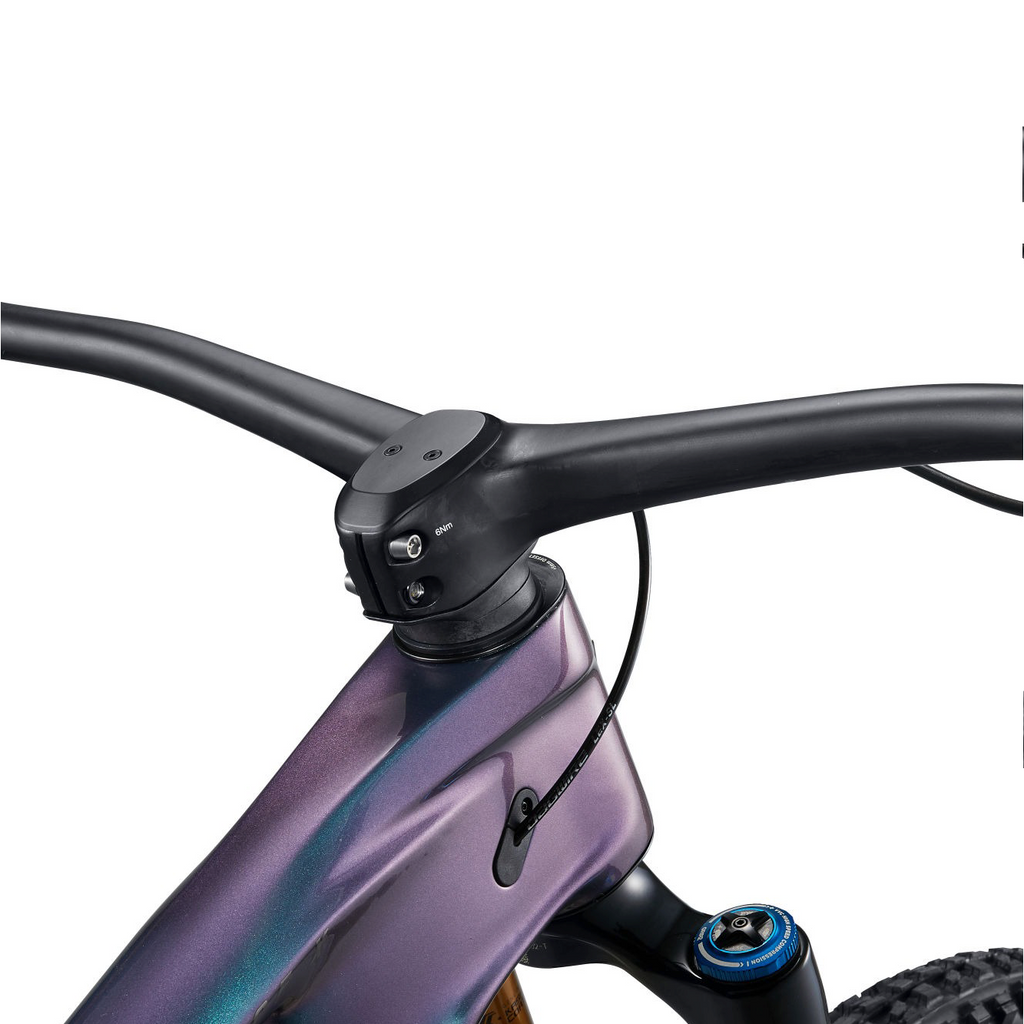

Handlebar Giant Contact SLR Trail Integrated, composite, 35mm
Grips Giant Tactal Pro Single Lock-On, 132x35mm
Stem Giant Contact Integrated SLR Trail S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle Giant Romero SL
Pedals N/A
Shifters SRAM AXS Pod, 1x12
Front Derailleur N/A
Rear Derailleur SRAM XO Eagle AXS, T-Type
Brakes Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers Shimano Deore XT BL-M8100
Cassette SRAM XO, T-Type, 10x52
Chain SRAM XO, T-Type
Crankset SRAM XO, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket SRAM DUB, press fit
Rims Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
Hubs[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body
Spokes Sapim, 28, straight pull, DBL Technology
Tires[F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
Extras Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
