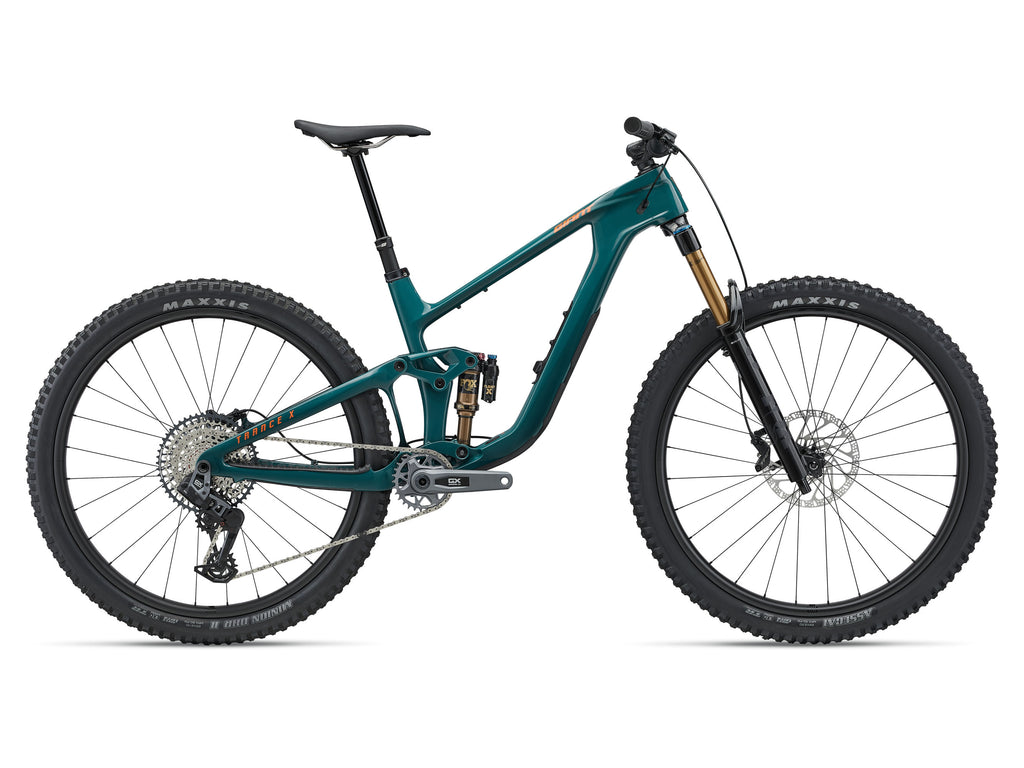

Giant Trance X Advanced 1 (2027) is a full-carbon trail bike made for technical climbs and aggressive descents. It has 140mm of Maestro rear suspension and top-tier Fox Factory suspension front and rear, and it rolls on carbon wheels. The SRAM GX AXS Transmission drivetrain shifts wirelessly. Geometry is easy to tune, with a three-position flip chip and a headset flip chip that adjusts reach by 10mm. It can also run a 27.5" rear wheel for a mullet setup.
Key Features
- Advanced-grade composite frame with 140mm Maestro rear suspension
- Fox Factory suspension: 150mm Fox 36 Float Factory GRIP X fork and Fox Float X Factory shock
- SRAM GX Eagle AXS Transmission wireless 1x12 drivetrain
- Giant TRX carbon wheels with 72 POE hubs
- TRP EVO Pro 4-piston hydraulic brakes

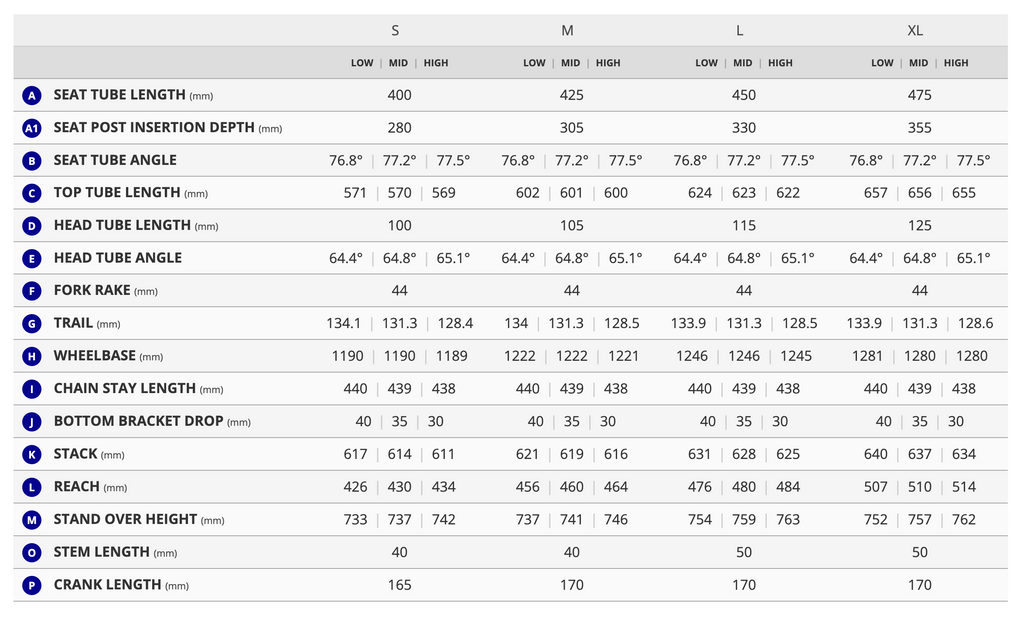

- Three-position geometry flip chip, plus a headset flip chip for 10mm of reach adjustment
- Runs full 29" as standard, or a 27.5" rear for a mullet setup
- Integrated storage in the down tube and under the top tube
Specifications
- Frame: Advanced-grade composite, 140mm Maestro suspension, flip chip, 12x148mm thru-axle, integrated storage
- Fork: Fox 36 Float Factory, GRIP X damper, 150mm, 15x110mm, 44mm offset
- Shock: Fox Float X Factory, 185x52.5mm, trunnion mount
- Crankset: SRAM GX Eagle T-Type, 30T, 165mm
- Bottom bracket: SRAM DUB, press-fit
- Shifter: SRAM AXS Pod, 1x12
- Rear derailleur: SRAM GX Eagle AXS Transmission
- Cassette: SRAM GX Eagle T-Type, 10–52T
- Chain: SRAM GX Eagle T-Type
- Brakes: TRP EVO Pro hydraulic, 4-piston, 203mm front and 180mm rear rotors
- Wheels: Giant TRX carbon hookless rims (30mm internal), Giant alloy hubs with 72 POE, Sapim spokes
- Tyres: Maxxis Assegai 29 x 2.5" WT (front), Maxxis Minion DHR II 29 x 2.4" WT (rear), tubeless ready
- Handlebar: Giant Contact SL TR35, 780mm, 20mm rise
- Stem: Giant Contact SL 35, 40mm (S/M) or 50mm (L/XL)
- Seatpost: Giant Contact Switch AT dropper (110–200mm depending on size)
- Saddle: Giant Romero SL
- Grips: Giant Tactal Pro, lock-on
- Pedals: Not included
- Wheel size: 29" (can take a 27.5" rear)
- Sizes: S, M, L, XL
- Colour: Abyss Teal
