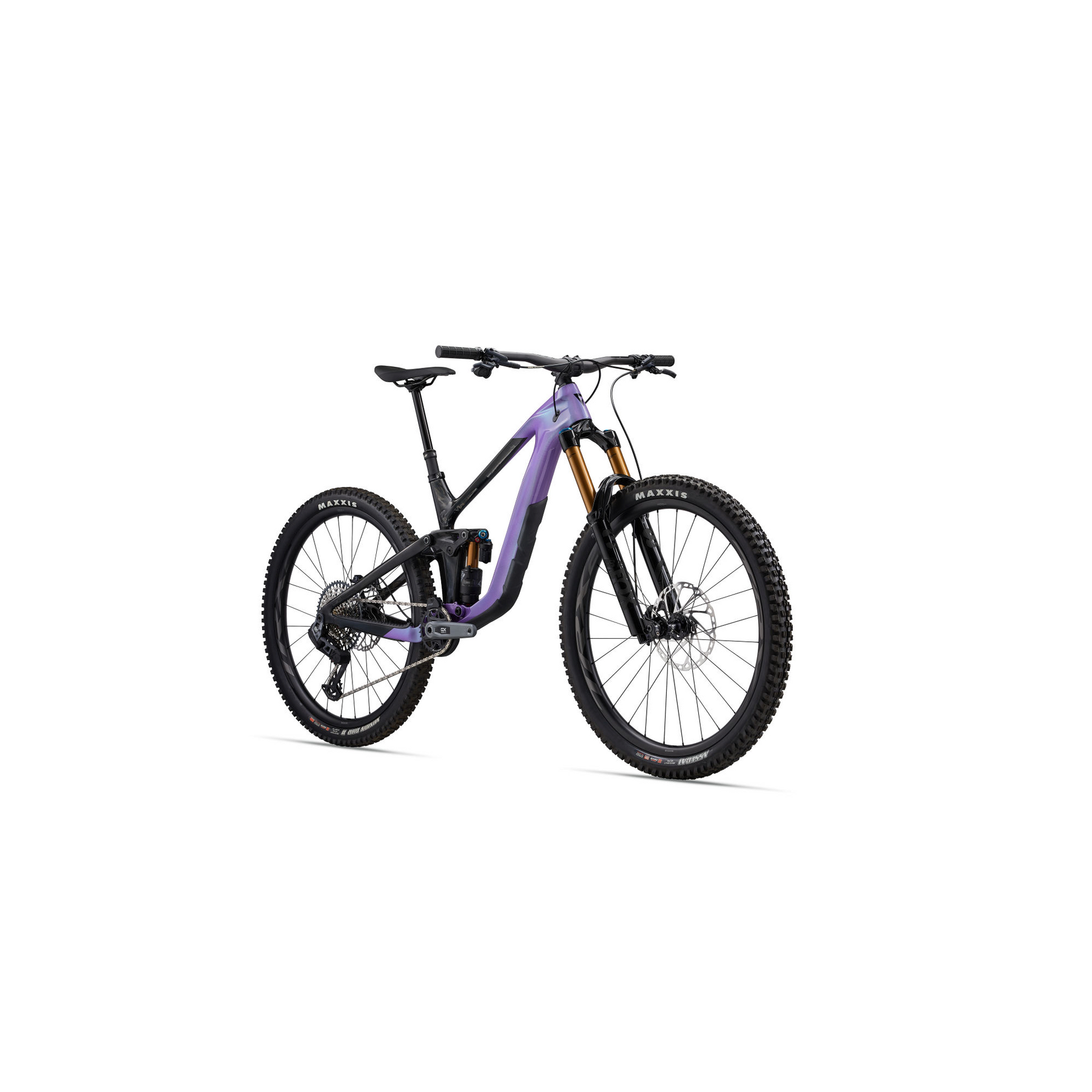

Giant Reign Advanced 1 - Digital Blurple

GO FAST, GET ROWDY AND NAIL NEW LINES. WITH A FULL-COMPOSITE CHASSIS, DEVELOPED WITH GIANT’S ENDURO RACING PROS, THIS HARD-CHARGING 29ER HAS 160MM OF MAESTRO REAR SUSPENSION, ADJUSTABLE GEOMETRY, AND THE OPTION TO SWITCH TO A 27.5-INCH REAR WHEEL.

Race-bred suspension
A Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

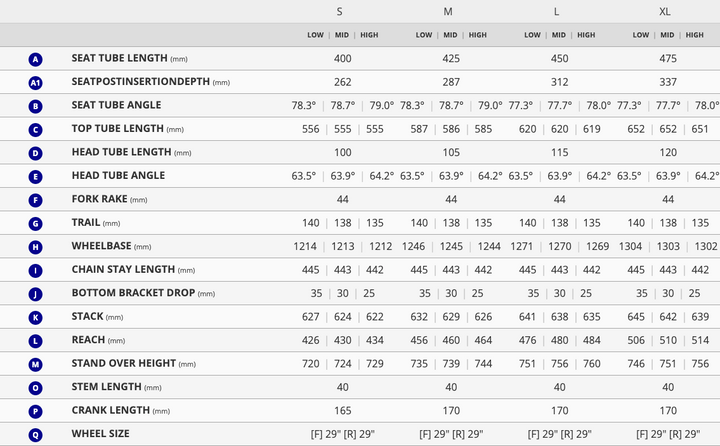

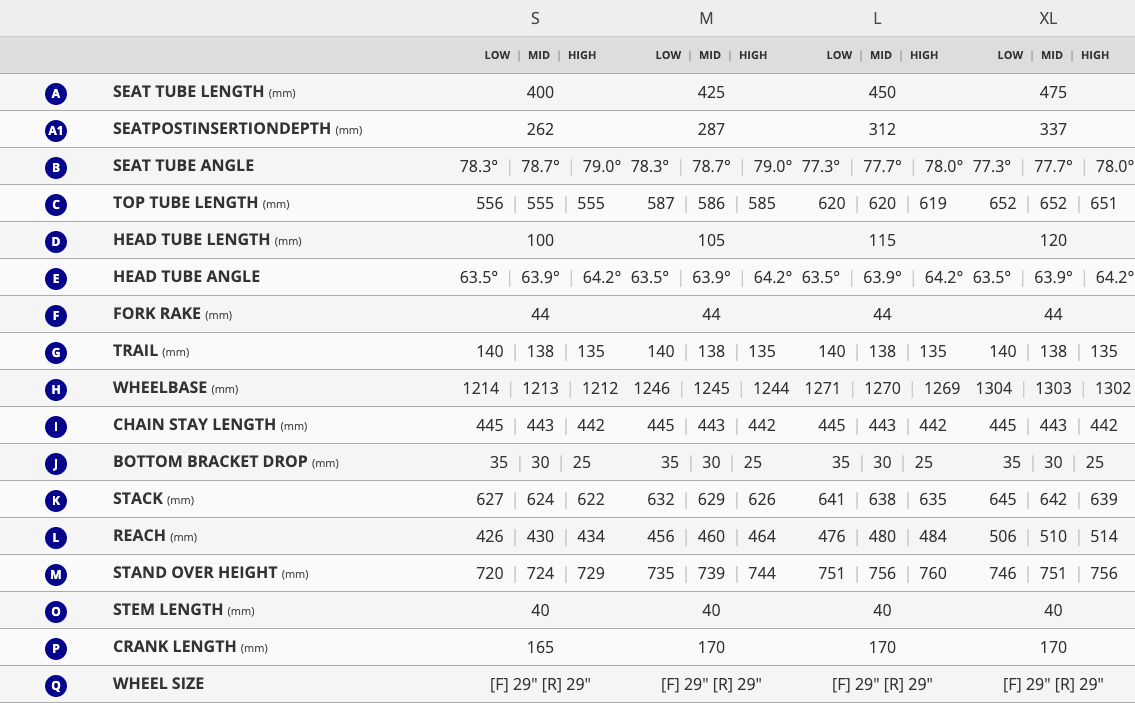

Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options
Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while 27.5 delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling and feel.

Specifications

• Sizes
  S, M, L, XL
• Colours
  Digital Blurple/Raw Carbon
• Frame
  Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
• Fork
  Fox 38 Factory, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
• Shock
  Fox Float X2 Factory, custom tuned for Giant
• Handlebar
  Giant Contact SLR TR35, composite, 35mm
• Grips
  Giant Tactal Pro Single lock-on
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
• Seatpost
  TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
• Saddle
  Giant Romero SL
• Pedals
  N/A
• Shifters
  SRAM AXS Pod, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM GX Eagle T-Type AXS
• Brakes
  Shimano SLX M7120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm
• Brake Levers
  Shimano SLX BL-M7100
• Cassette
  SRAM GX, T-Type 10x52
• Chain
  SRAM GX T-Type
• Crankset
  SRAM GX T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant TRX 2 29 Carbon WheelSystem, 30mm inner width
• Hubs
  [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 30t 3-pawl driver, 6-bolt
• Spokes
  Sapim
• Tires
  [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
• Extras
  Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
