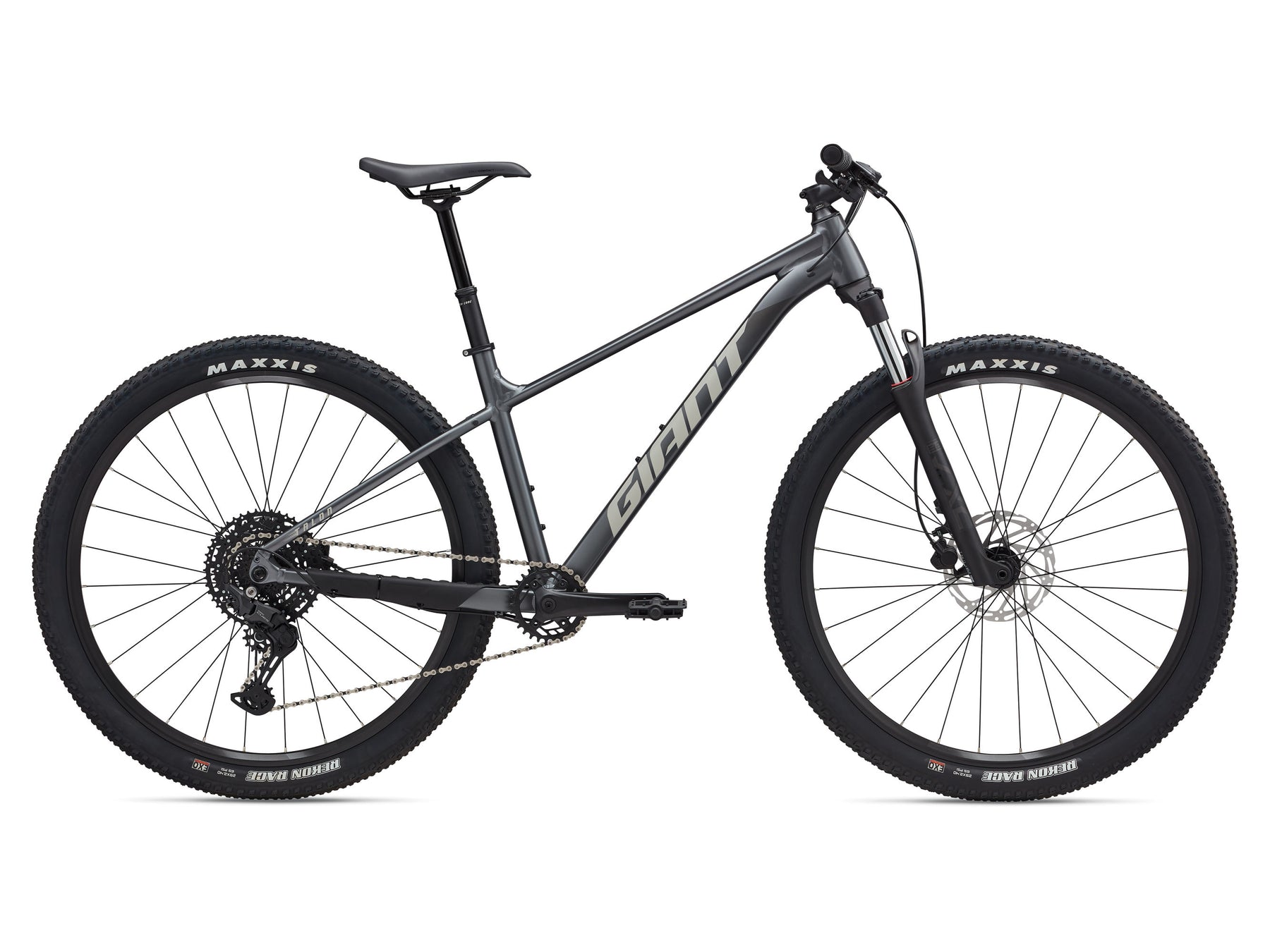

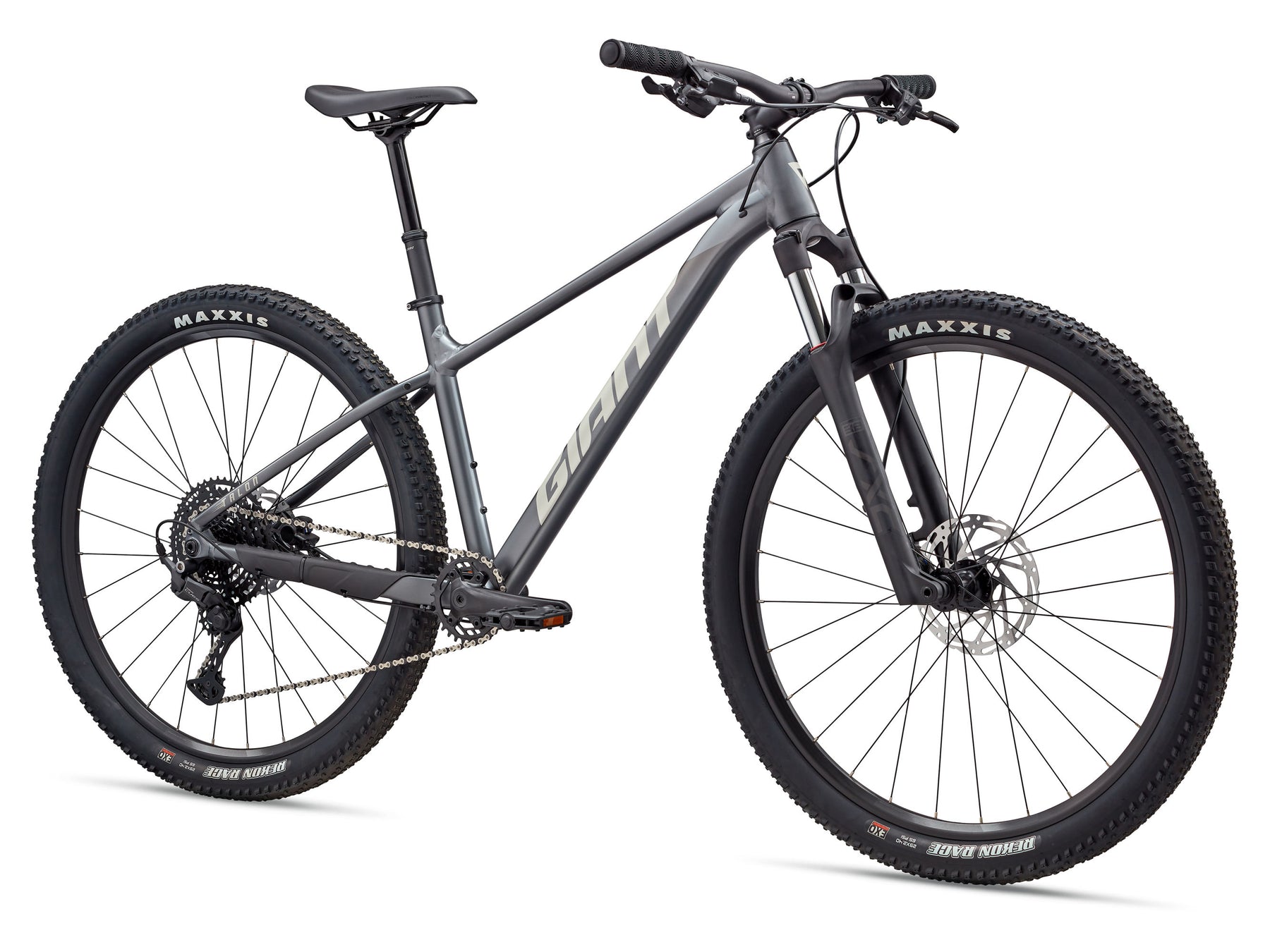

The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Features

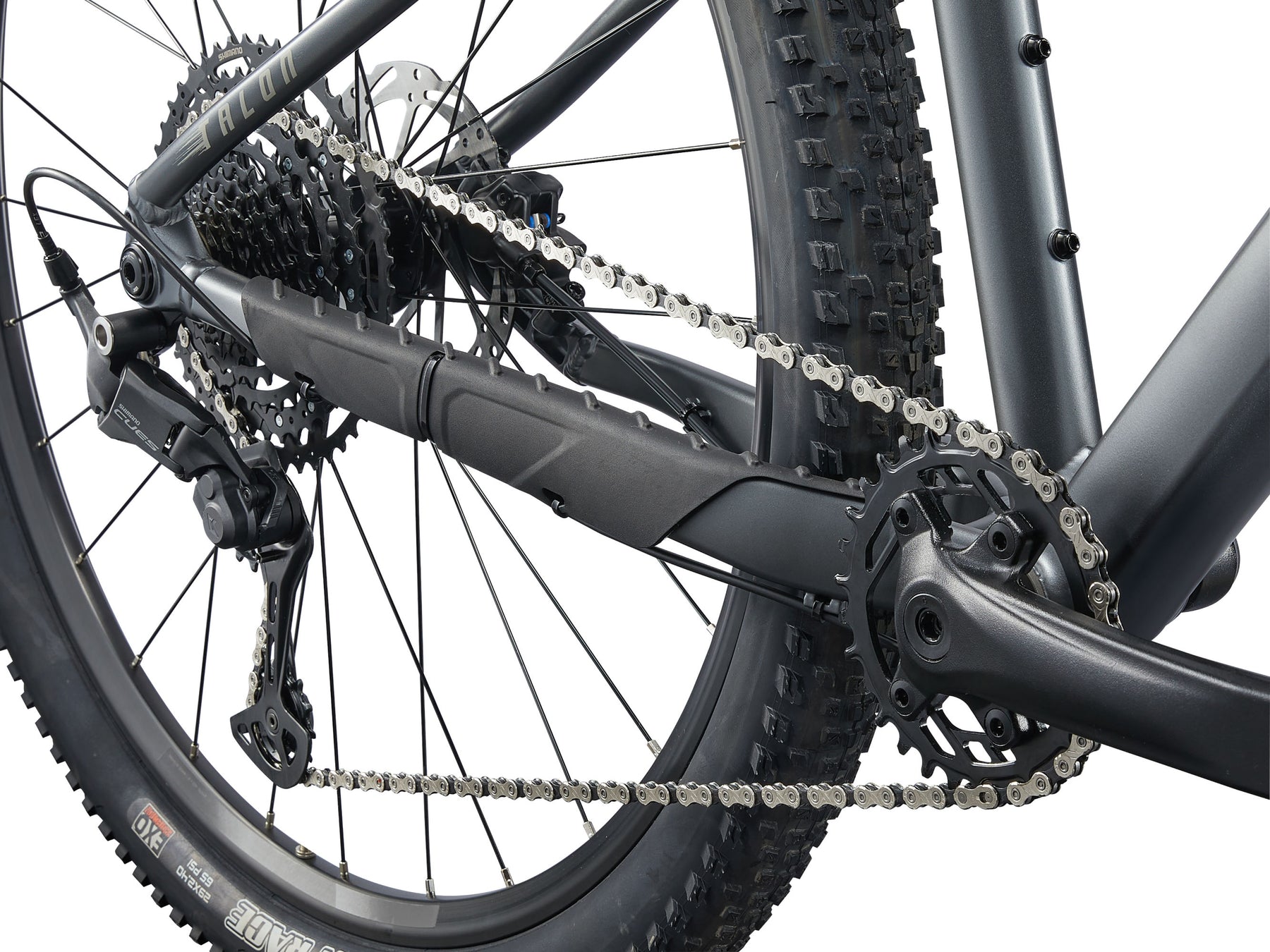

Modern MTB Design: Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost), and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control: New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size and model. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size and model. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable: All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Specifications
Sizes: 29: S, M, L, XL
Colours: Charcoal
Frame: ALUXX-grade aluminium, disc
Fork: SXC32-3 RL, coil spring, 100mm, Boost 15x110
Shock: N/A

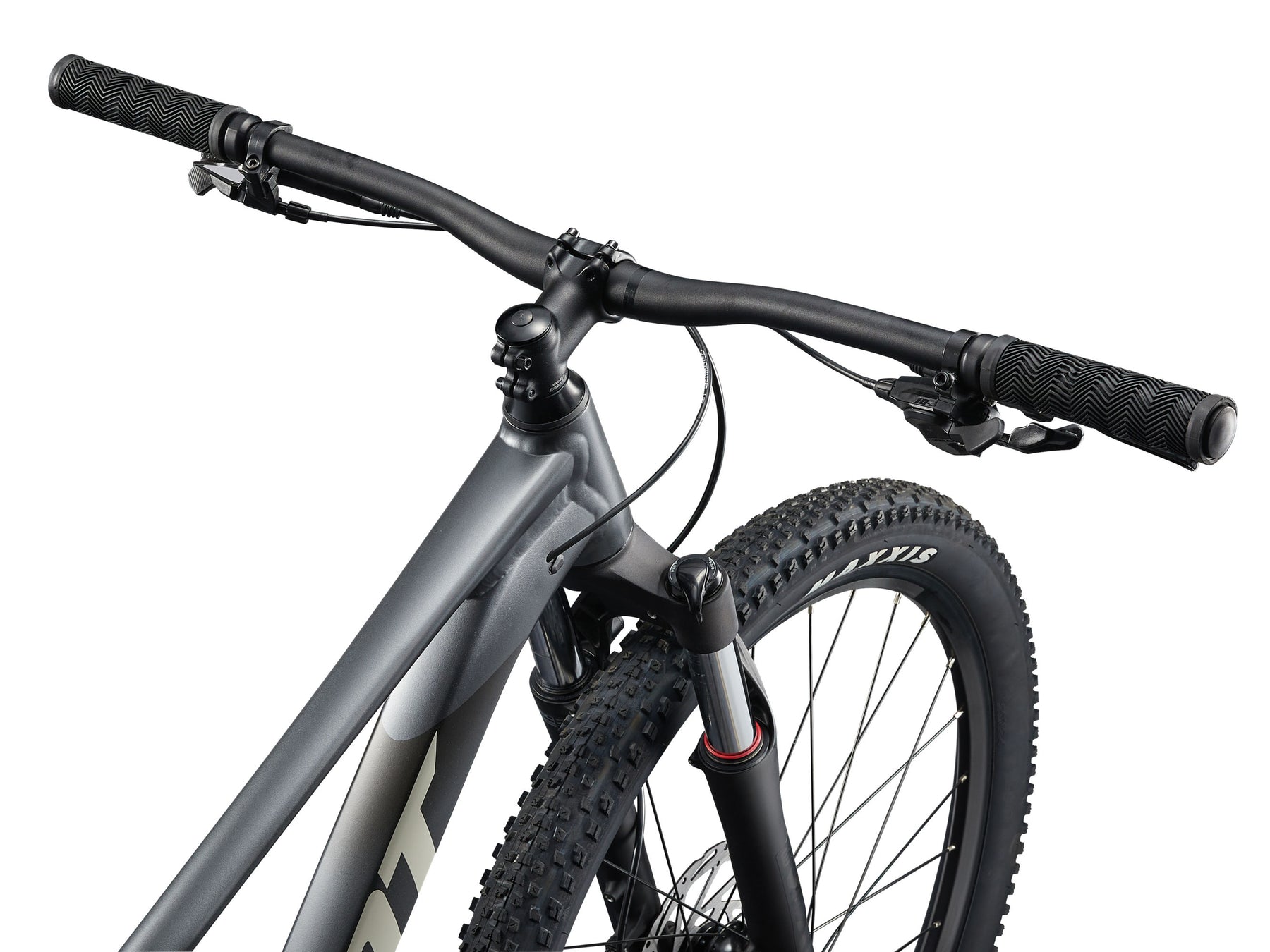

Handlebar: Giant Connect Trail, 31.8mm
Grips: Giant Sole-O
Stem: Giant Sport, 7-degree S: 50mm M: 60mm L: 70mm XL: 80mm
Seatpost: Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 120mm travel / 30.9 x 400mm L: 120mm travel / 30.9 x 400mm XL: 120mm travel / 30.9 x 400mm
Saddle: Giant ErgoContact Trail
Pedals: MTB caged
Shifters: Shimano CUES SL-6000, 1x10
Front Derailleur: N/A
Rear Derailleur: Shimano CUES, U6000, Shadow+
Brakes: Tektro TKD143, hydraulic, Tektro rotors [F]180mm, [R]160mm
Brake Levers: Tektro TKD143
Cassette: Shimano CUES, CS-LG300, 11x48
Chain: KMC X-11
Crankset: ProWheel Charm, 30t S: 170mm M: 170mm L: 170mm XL: 175mm
Bottom Bracket: Cartridge
Rims: Giant GX03V 29 alloy, double wall
Hubs: Alloy, sealed bearing, [F] 15x110 thru axle, [R] 12x142 thru-axle
Spokes: Stainless, 14g
Tires: Maxxis Rekon Race 29x2.4", wire bead
Extras: 2.4" max tyre size, 32t max chainring size
Mfr Claimed Weight
TBC
